Automatic Swing Gate
- Stock: In Stock
- Model: automatic swing gate

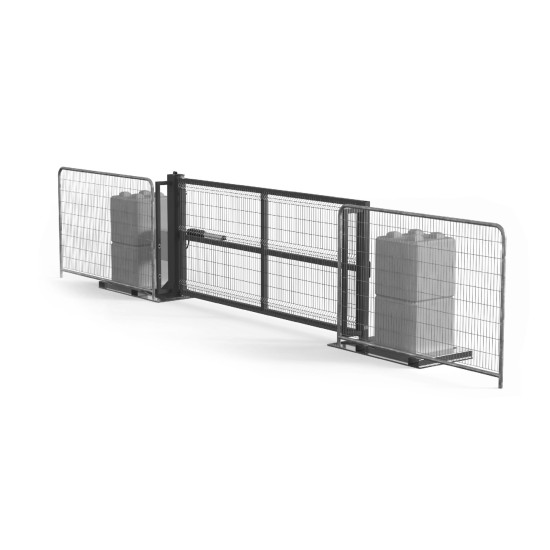

Our mobile automatic steel swing gate is an innovative on the ground solution, mounted on steel galvanised base plates which each have fork slots and 2 x 1200kg concrete blocks as the counterbalance. A solid level surface is required. It is available for either long term hire or sale.
Ideal for sites requiring a temporary access control solution. Temporary mesh fencing panels (we can also supply, if required) can be attached to either side of the actual gate, to further enhance a site's perimeter security. There is a 4.5m opening width, between gate posts, along with a height of 2m. Entry points can be controlled across a range of applications including (although not limited to); construction, infrastructure, industrial, vacant property and event sites. Other products in our perimeter related stock can be flexibly used alongside - such as concrete barriers/blocks, turnstiles, guard huts and temporary fencing, to help work towards a complete perimeter security solution for your individual requirements.
Key features include;
Dimensions:
4.5m opening width between gate posts
8.2m overall width (excluding any attached temporary mesh fencing panels on either side of the gate)
11.5m overall width (including any attached temporary mesh fencing panels on either side of the gate)
1m depth (for the steel galvanised base trays)
2m height of the gate and posts
Available controls (upon request):
GSM keypad.
GSM Intercom complete with keypad
GSM Remote control
Control configuration (upon request): The gates can be configured to auto close after a set time or programed so that they open and close on command only
Gate safety: The gates will be fully compliant with moving machinery directives so they will be fully compliant.
Power supply: 240-volt 13-amp single phase, a three-pin commando socket will be on the side of the gate control panel ready to accept an incoming supply
Gate infill: Mesh
Finish: hot dipped galvanized.
Delivery: Available across the UK mainland, using our own specialist fleet of vehicles.
